Hotpoint 9,000 BTU PTAC Air Conditioner 208/230 Volts - 20 Amp - Heat Pump - Digital Control

prev next

Overview

Hotpoint
9,000 BTU PTAC Unit
Heat Pump
208/230 volts, 20 amps

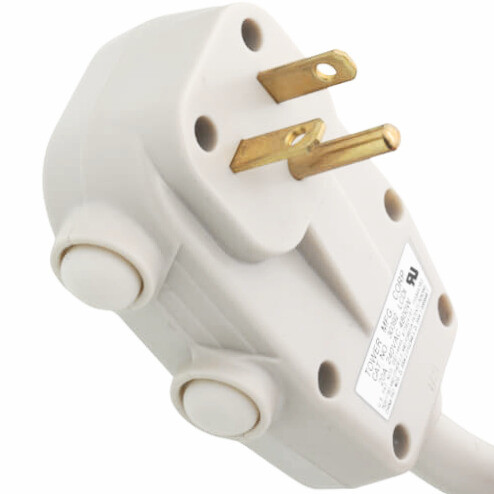

NEMA 6-20 plug
Cord Included

Best price

$710.00

647 In stock

Quantity

Air Conditioner Type PTHP
Manufacturer Hotpoint
Manufacturer Sku AH11H09D3B
Condition New
Cooling BTU 9,000 BTU
Machine Volts 208/230
Machine Amps 20 amp
Cord Included Yes
Plug Type NEMA 6-20
Controls Electronic
Heat Heat Pump
Heater Size (KW) 3.5 KW
Fits Standard 42" x 16" Sleeve Yes
Product Length 42
Product Width 20.5
Product Height 16
Shipping Length 47
Shipping Width 26
Shipping Height 21
Warranty - Parts 1 Year
Whole Machine - Labor Warranty 1 Year
Compressor / Sealed System Warranty 5 Years
Refrigerant Type R-410A
Wi-Fi Compatible No
Remote Control No

Automatic Restart Yes
Seacoast Protection No
Freeze Protection Yes
Number of Fan Motors 2
Fan Speeds 3
ADA Compliant No
Number of Thermostat Wires 7
Energy Efficiency Rating (EER) 11.4
COP Rating 3.4
Sleeve Included No
Grille Included No
BTUs Heating (Nominal) 10900
Maximum Cooling Watts 796
Maximum Cooling Amps 3.8
Maximum Heating Watts 3604
Maximum Heating Amps 15.7
Actual Cooling BTUs @ 208V 8800
Actual Cooling BTUs @ 230V 9000
Actual Heating BTUs Elec @ 208V 8900
Actual Heating BTUs Elec @ 230V 10900
Actual Heating BTUs Heat Pump @ 208V 7900
Actual Heating BTUs Heat Pump @ 230V 8100
CFM (Cool/Wet Coil) - High: 435
CFM (Cool/Wet Coil) - Low: 394

Hotpoint PTAC Warranty

Hotpoint Will Replace

one year

Any part of the air conditioner which fails due to a defect in materials or workmanship. During this limited one-year waranty, Hotpoint will provide, free of charge, all labor and related service cost to replace the defective part.

five years

Sealed Refrigerating System, if any part of the Sealed Refrigerating System (the compressor, condenser, evaporator, and all connecting tubing) should fail due to a defect in materials or workmanship. During this limited five-year warranty, Hotpoint will provide, free of charge, all labor and related service costs to replace the defective part.

2-5 years

Fan Motors, Switches, Thermostat, Heater, Heater Protectors, Compressor Overload, Solenoids, Circuit Boards, Auxiliary Controls, Thermistors, Freeze Sentinel, Frost Controls, ICR Pump, Capacitors, Varistors and Indoor Blower Bearing, if any of these parts should fail due to a defect in materials or workmanship. During this additional four-year limited warranty, the customer will be responsible for any labor and related service costs.

Details

Hotpoint PTAC units are one of the highest value options available.

This 9,000 BTU Hotpoint PTAC air conditioner fits in a standard sleeve. The unit requires 208/230 volts and 20 amps, and uses R-410A refrigerant. The unit includes a 20 amp cord with a new NEMA 6-20 plug. You'll need a NEMA 6-20 receptacle. The Heat Pump and Electronic control make it easy for users to change the room temperature to the desired setting.

With a history of building durable products at an affordable price, Hotpoint is the trusted high value, economical PTAC brand.

Sleeves and Grilles are sold separately and not included with this unit.
