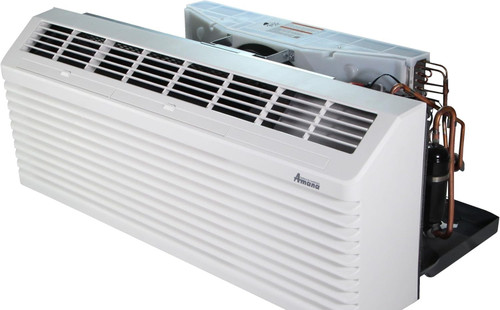

Amana J-Series 17,000 BTU PTAC Unit 208/230 Volts - 30 Amp - Electric Heat - External Thermostat - PTC173J50AXXX

No reviews yet Write a Review

Overview:

  • 17,000 BTU PTAC Unit by Amana
  • Electric Heat
  • 208/230 Volts, 30 Amp
  • Requires installation of a Wall Thermostat (Sold Separately)
Amana J-Series 17,000 BTU PTAC Unit 208/230 Volts - 30 Amp - Electric Heat - External Thermostat - PTC173J50AXXX
$1,260.00

Details

  • Please allow 4 – 6 weeks for delivery
If you're looking for a New PTAC unit for your 700 – 1,000 Sq. foot space, this 17,000 BTU Amana unit [PTC173J50AXXX] is the perfect choice.The PTAC needs 208/230v and 30a of power and requires the installation of a Wall Thermostat (Sold Separately). This unit also features Electric Heat.This Amana unit is a great solution for anyone needing a PTAC unit for new construction, or to replace an existing unit.

Wall Sleeve Find that part by clicking here.

Exterior Grille Find that part by clicking here.

Wall Thermostats Find that part by clicking here.

pdfimagehttps://newros4lessmedia.s3.us-east-2.amazonaws.com/100966/Amana J_K Series Installation Instructions.pdf
pdfimagehttps://newros4lessmedia.s3.us-east-2.amazonaws.com/100966/Amana PTAC Warranty Certificate.pdf

Overview:

  • 17,000 BTU PTAC Unit by Amana
  • Electric Heat
  • 208/230 Volts, 30 Amp
  • Requires installation of a Wall Thermostat (Sold Separately)

Product Info

Air Conditioner Type:
PTAC
Manufacturer:
Amana
Manufacturer Sku:
PTC173J50AXXX
Condition:
New
Cooling BTU:
17,000 BTU
Machine Volts:
208/230
Machine Amps:
30 amp
Cord Included:
Yes
Plug Type:
NEMA 6-30
Controls:
Thermostat (External)
Heat:
Electric Heat
Heater Size (KW):
5.0 KW
Fits Standard 42" x 16" Sleeve:
Yes
Energy Star Certified:
No
Whole Machine - Labor Warranty:
1 Year
Compressor / Sealed System Warranty:
5 Years
Refrigerant Type:
R-32
Remote Control:
No
Automatic Restart:
Yes
Seacoast Protection:
No
Freeze Protection:
Yes
Number of Fan Motors:
2
Fan Speeds:
2
ADA Compliant:
No
Energy Efficiency Rating (EER):
9.7
Sleeve Included:
No
Grille Included:
No
BTUs Heating (Nominal):
17100
Maximum Heating Watts:
5000
Maximum Heating Amps:
21.7
Actual Cooling BTUs @ 230V:
16700
Actual Heating BTUs Heat Pump @ 208V:
14000
Actual Heating BTUs Heat Pump @ 230V:
17100
