Amana High Efficiency 12,000 BTU PTAC Unit | 208/230 Volts - 20 Amp - Electric Heat - External Thermostat - HEC123K35AXXX

No reviews yet Write a Review

Overview:

  • 12,000 BTU PTAC Unit by Amana
  • High Efficiency
  • Electric Heat
  • 208/230 Volts, 20 Amp
  • External Thermostat
Amana High Efficiency 12,000 BTU PTAC Unit | 208/230 Volts - 20 Amp - Electric Heat - External Thermostat - HEC123K35AXXX
$799.00

Details

This 12,000 BTU High Efficiency Amana (HEC123K35AXXX) PTAC air conditioner will keep your guests comfortable all year round. The PTAC AC unit offers high-quality construction and customizable settings to meet even the pickiest guests' climate control demands. This Amana 12,000 BTU PTAC AC Unit with Electric Heat uses 208/230 Volts and 20 Amps. Features upgraded DC motors for a more efficient & quieter unit. After the installation of an External Thermostat, it's always easy for users to adjust the room temperature to their preferred level of comfort.
pdfimagehttps://newros4lessmedia.s3.us-east-2.amazonaws.com/102011/Amana J_K Series Installation Instructions.pdf
pdfimagehttps://newros4lessmedia.s3.us-east-2.amazonaws.com/102011/Amana PTAC Warranty Certificate.pdf
pdfimagehttps://newros4lessmedia.s3.us-east-2.amazonaws.com/102011/Amana PTAC High Efficiency Models.pdf

Overview:

  • 12,000 BTU PTAC Unit by Amana
  • High Efficiency
  • Electric Heat
  • 208/230 Volts, 20 Amp
  • External Thermostat

Product Info

Net Weight:
108
Air Conditioner Type:
PTAC
Manufacturer:
Amana
Manufacturer Sku:
HEC123K35AXXX
Cooling BTU:
12,000 BTU
Machine Volts:
208/230
Machine Amps:
20 amp
Cord Included:
Yes

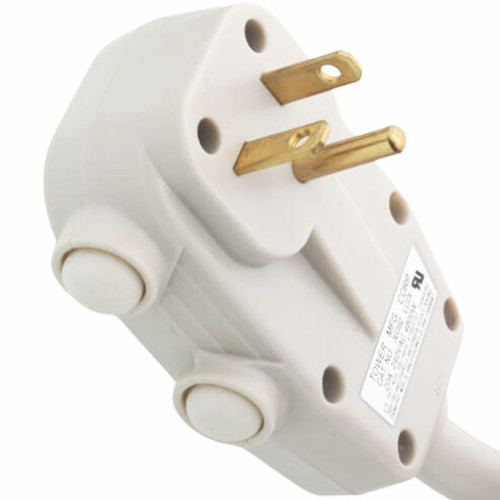

Plug Type:
NEMA 6-20
Controls:
Thermostat (External)
Heat:
Electric Heat
Heater Size (KW):
3.5 KW
Fits Standard 42" x 16" Sleeve:
Yes
Product Length:
42
Product Width:
20.5
Product Height:
16
Energy Star Certified:
No
Refrigerant Type:
R410A
Wi-Fi Compatible:
No
Remote Control:
No
Automatic Restart:
Yes
Seacoast Protection:
No
Freeze Protection:
Yes
Number of Fan Motors:
2
Fan Speeds:
2
ADA Compliant:
No
Energy Efficiency Rating (EER):
11.5
Sleeve Included:
No
Grille Included:
No
BTUs Heating (Nominal):
11900
Maximum Cooling Watts:
1005
Maximum Cooling Amps:
6.1
Maximum Heating Watts:
3500
Maximum Heating Amps:
15.2
Actual Cooling BTUs @ 208V:
11400
Actual Cooling BTUs @ 230V:
11700
CFM (Cool/Wet Coil) - High:
330
CFM (Cool/Wet Coil) - Low:
245
